Station Antennas
A502HBR2: 50MHz(6m)

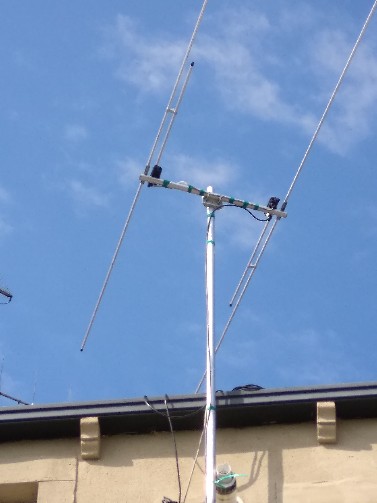

2-ELEMENTS PHASED DRIVE BEAM ANTENNA
Dimensions:800mmx3000mmx85mm
Weight:1.7kg
Frequency:50 to 53MHz(Center frequency without adjustment is set to 51MHz)
Gain:6.3dBi / Max.power rating:400W(SSB)
Impedance:50ohms / VSWR:Less than 1.5:1(50 to 52MHz without adjustment)
FB ratio:More than 15dB / Half power band width:Less than 70degrees / Wind surface area:0.14m2
Rated wind velocity:40m/sec.
Turning radius:approx.1600mm / Connector:MJ
Mast diameter accepted:25mm to 56mm

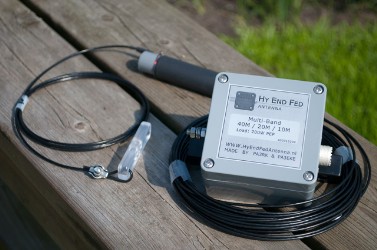

HyEndFed 5 band
For 80,40, 20, (15) and 10 meter.
Max. Power : 200 watt PEP.
Length : 23 meter.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector : Silverplated.
All hardware Stainless steel.
Only a tuner needed on 80 meter 50KHz up or down from the centre frequency.
This antenna has a coil in the antenna wire at 20 meter.
Excellent radiation efficiency due resonant design and low loss parts.
4 to 6db better on 40 as the much shorter 3 band design
Loss in Matching unit < 0,8dB on 10mtr < 1,5d
The VSWR measurements of this antenna are made at a height of 10 meters horizontally.
12 AVQ

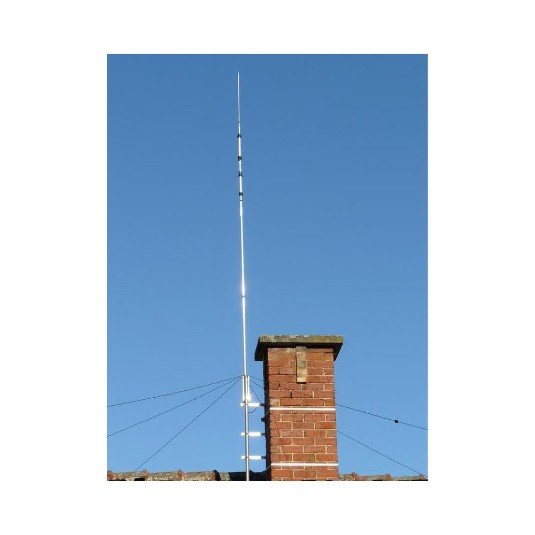

The AV-12AVQ is a completely self-supporting tri-band vertical antenna. It delivers exceptionally low angle radiation with 1.5:1 VSWR or less on all three bands.
It includes all stainless steel hardware and SO-239 input connector. You can also roof mount this antenna with the optional AV-14RMQ roof mounting kit.
AV-12AVQ Specifications
- Bands 10, 15, and 20 meters
- Max Power 1500 Watts PEP
- Input Connector SO-239
Mechanical Specifications
- Height 13 feet
- Weight 9 pounds
- Wind Survival 80 MPH
- Recommended Mast Size 1.5 in - 1.625 in. OD
Wire Antennas Oct 2024
Does And Don ts
Antenna Sizes

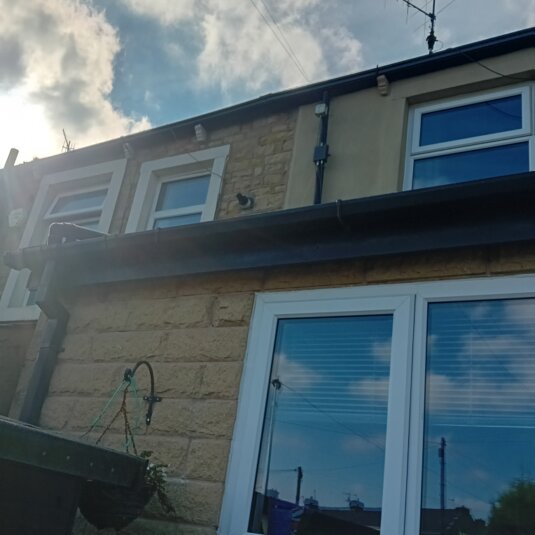

Mat40 Box and Highendfed Uni box

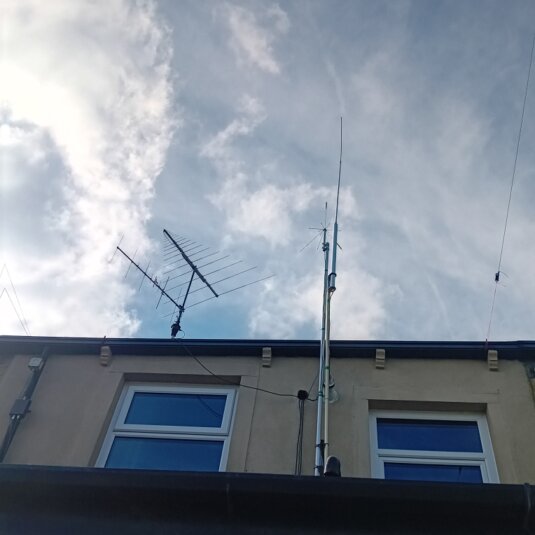

Sirio 70 Mhz Vertical antenna
